Inclined Anchor‑Ring Welding Machine
Dedicated equipment for welding stop rings onto Split-Set.
Machine introduction

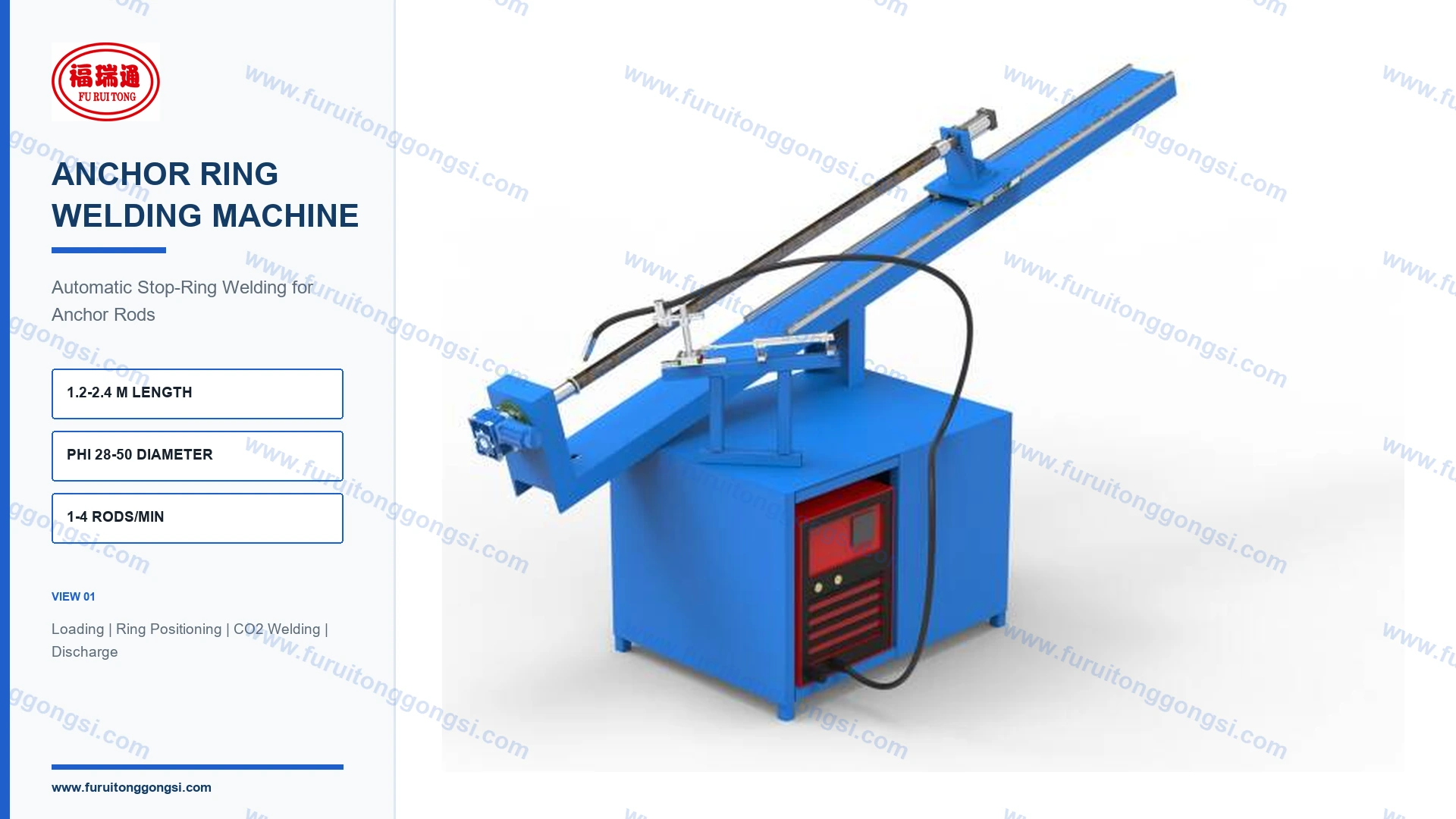

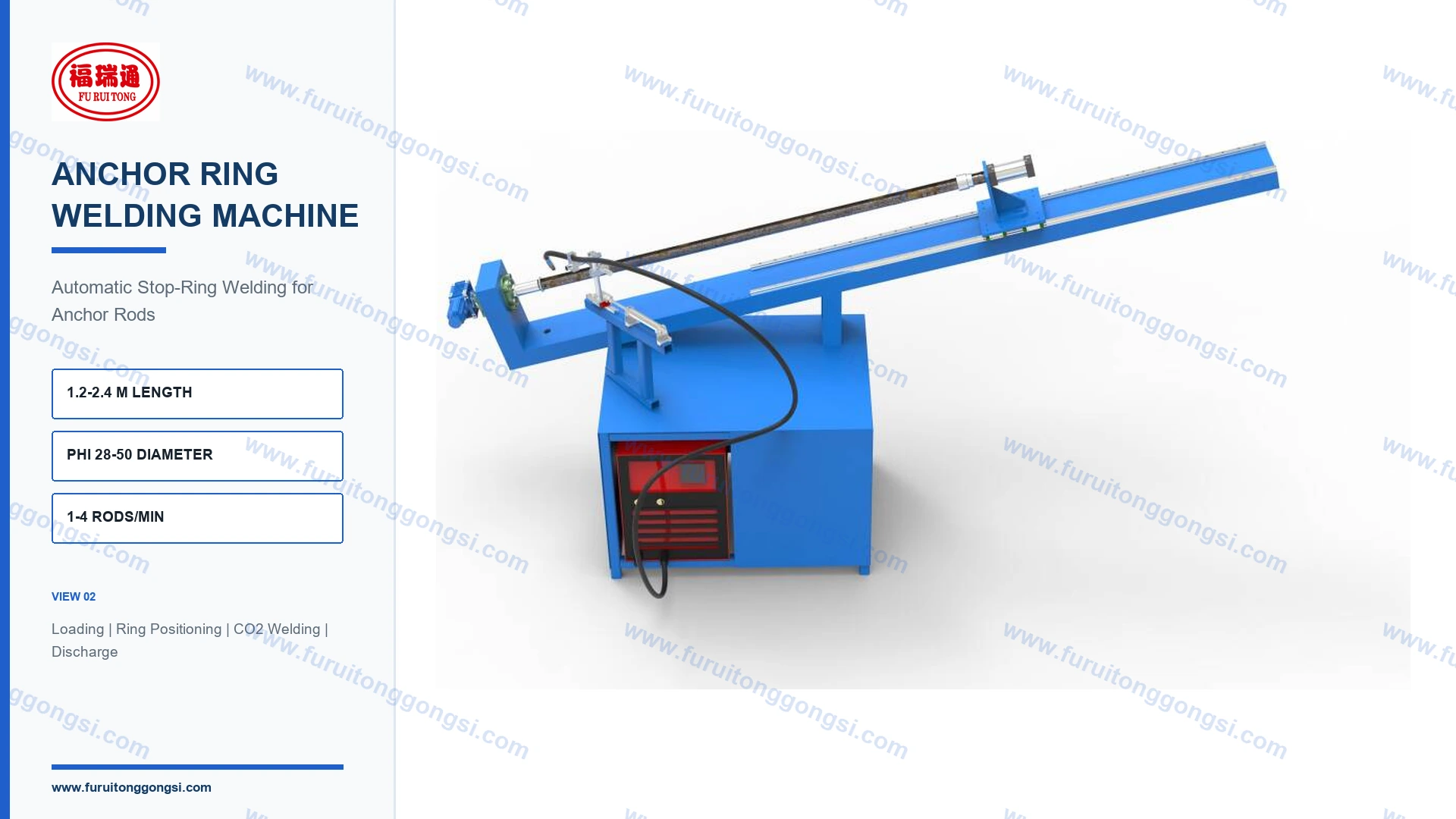

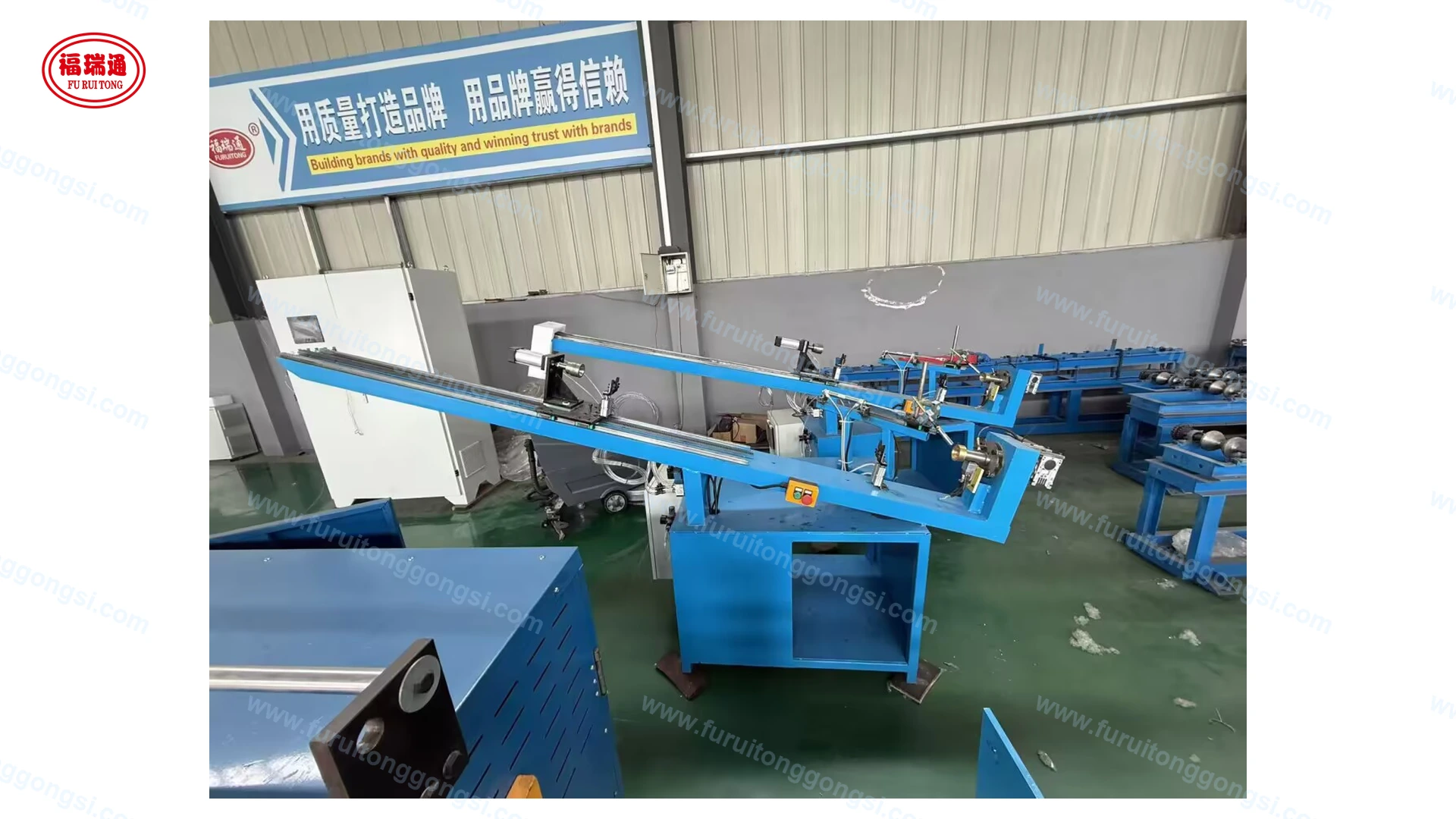

This equipment is dedicated to welding stop rings onto Split-Set. It uses gas-shielded welding to complete the circumferential weld between the ring and the anchor body. Two configurations are available: in the semi-automatic version, the operator places the ring manually before automatic welding; in the fully automatic version, a gantry automatically loads the ring. Its compact structure supports standalone operation or integration into an automated Split-Set production line.
Production tasks and use cases

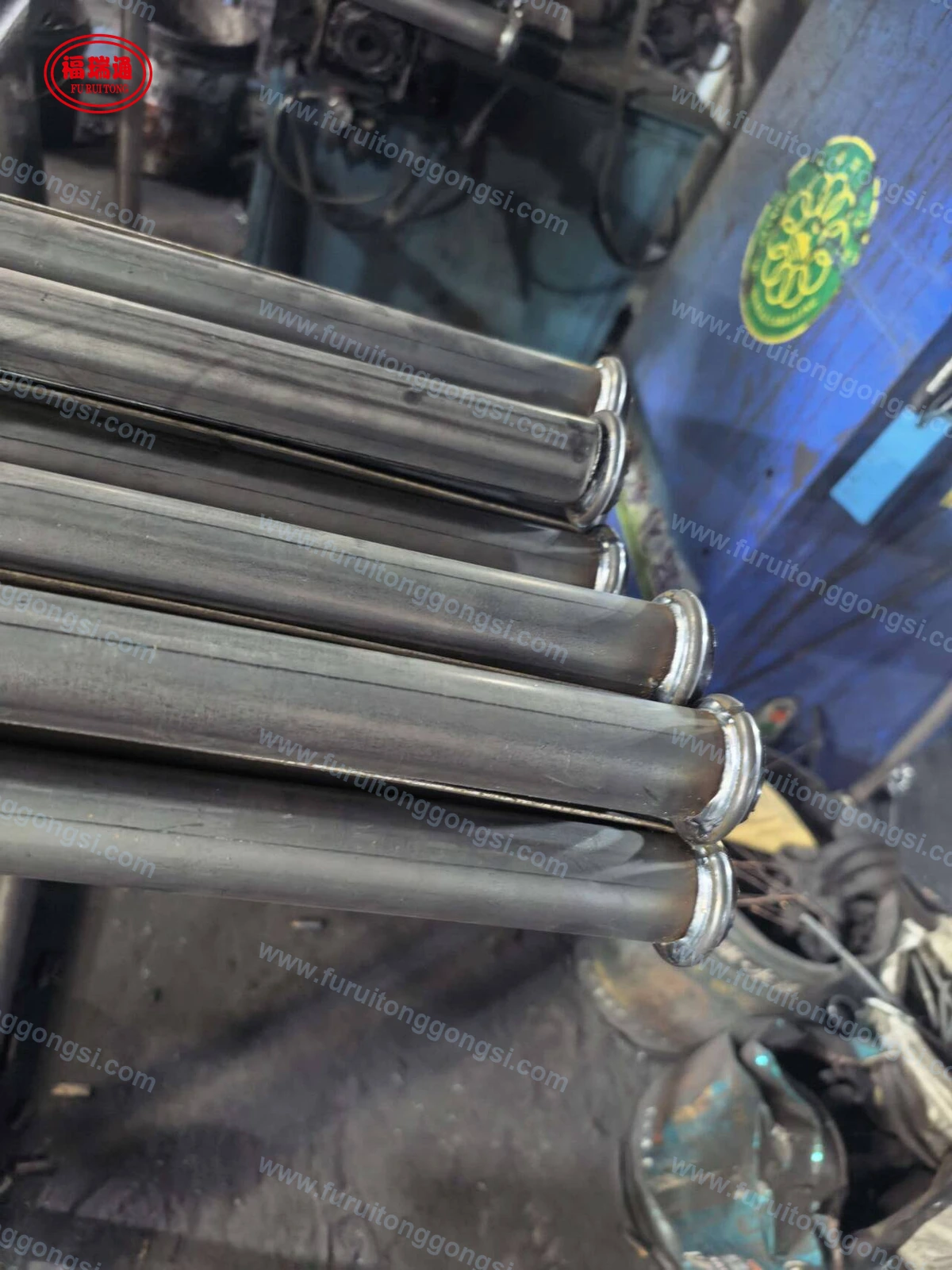

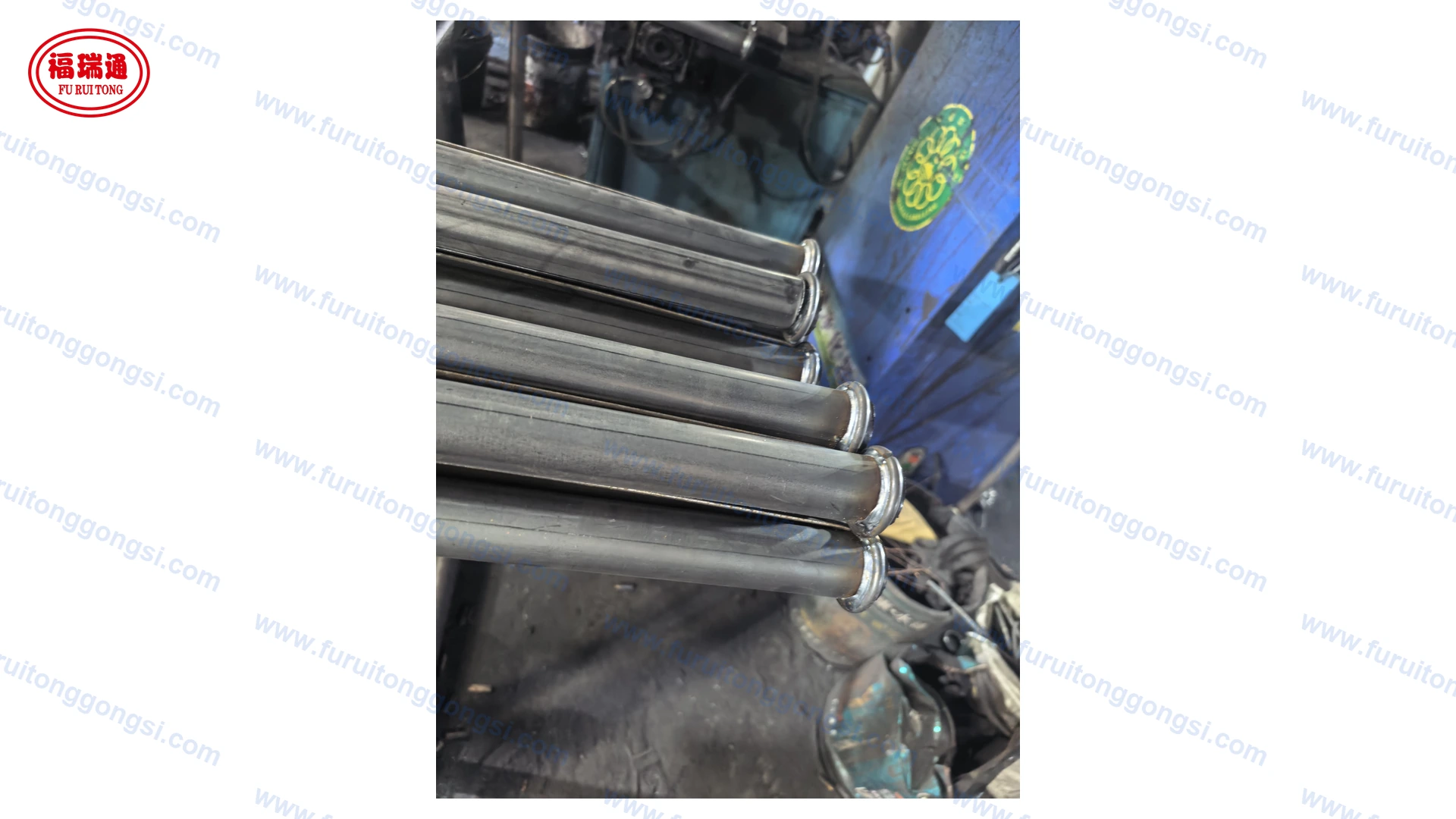

- Automatic anchor stop-ring welding
- CO2-shielded welding process
- Adjustable for multiple anchor sizes
Recommended wearing parts
- Welding torch nozzle
Information needed for equipment selection
Share these project details so our team can check the applicable machine configuration.
- Finished-product dimensions, tolerances and required process steps
- Raw-material grade, form and incoming size
- Target output, workshop space and available utilities
Questions about this machine
Configuration and quotation are confirmed against your actual production requirements.
What information is needed to confirm the configuration of Inclined Anchor‑Ring Welding Machine?
Provide the raw-material specification, finished-product dimensions, required process steps, target output and available workshop space. Furuitong will confirm the applicable configuration before quotation.
Which production tasks does Inclined Anchor‑Ring Welding Machine cover?
Automatic anchor stop-ring welding; CO2-shielded welding process; Adjustable for multiple anchor sizes
