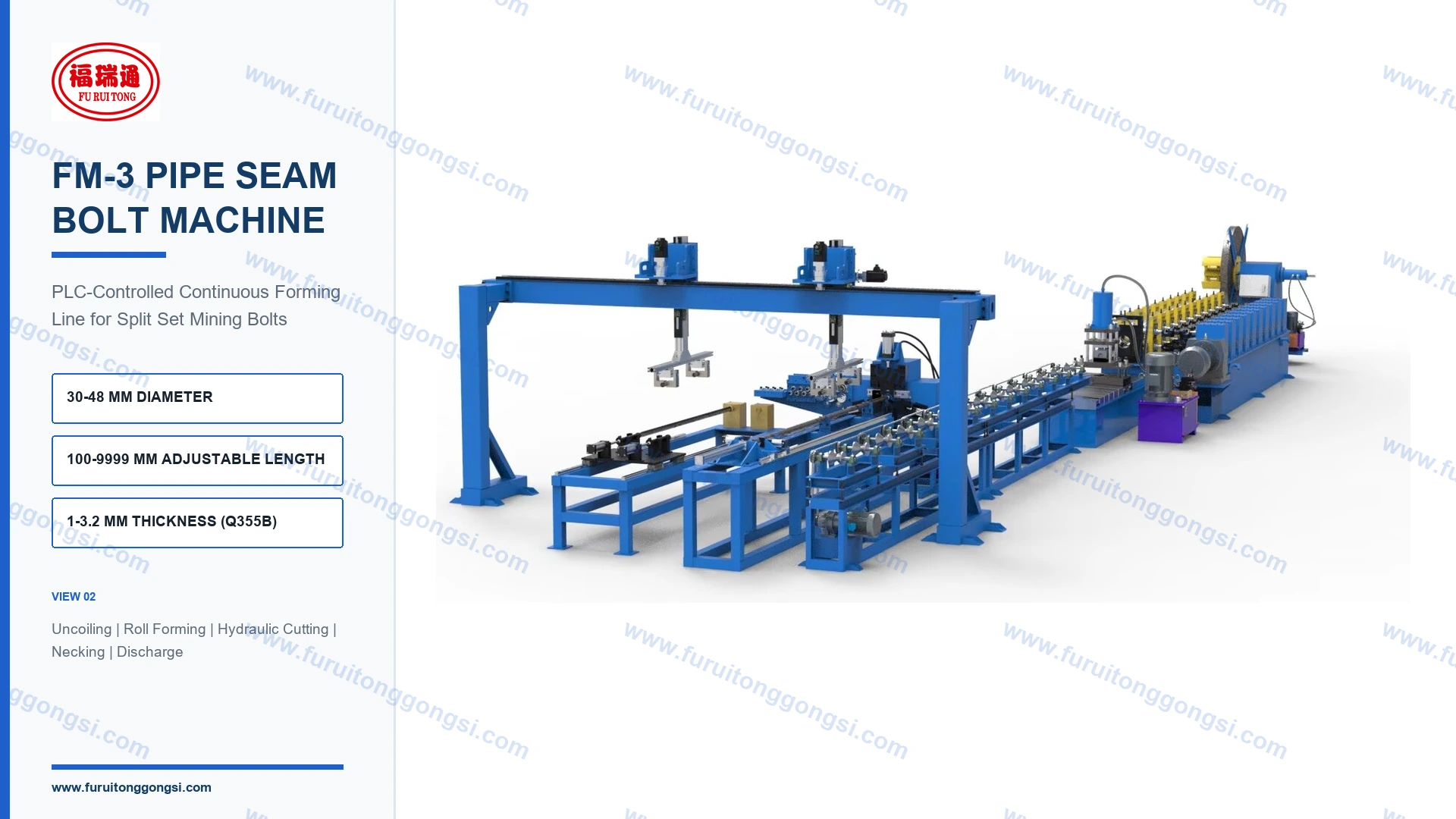

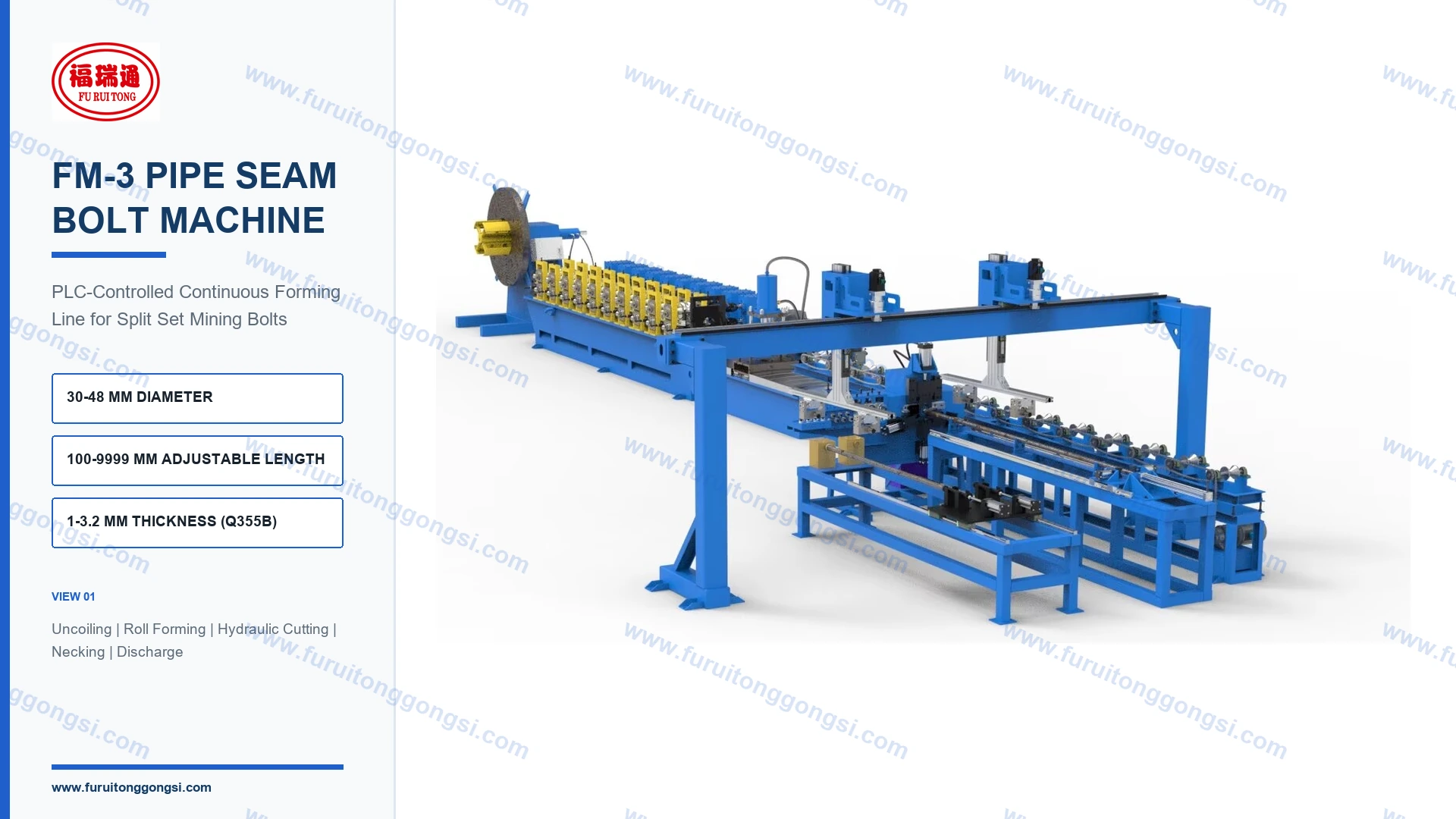

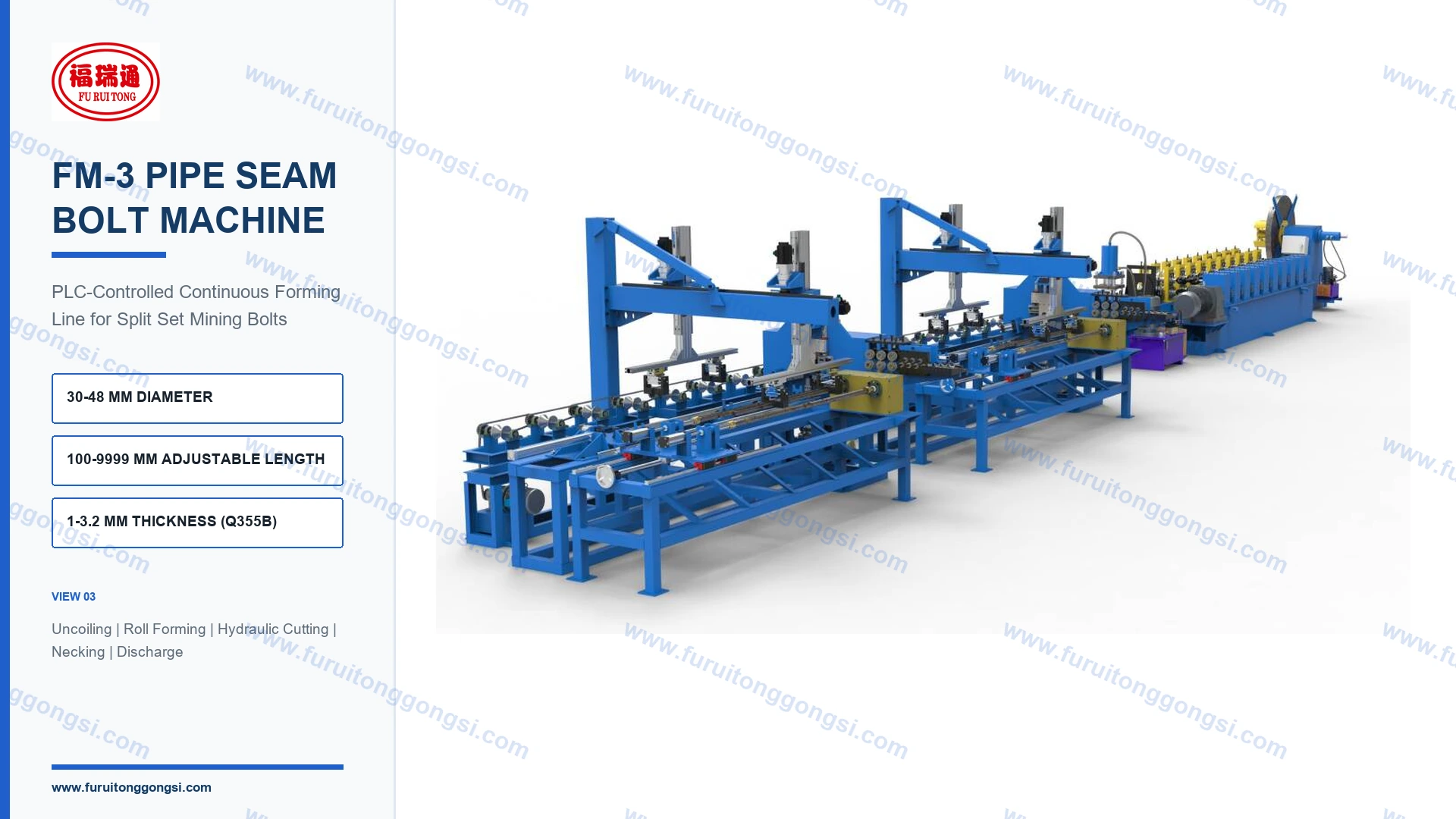

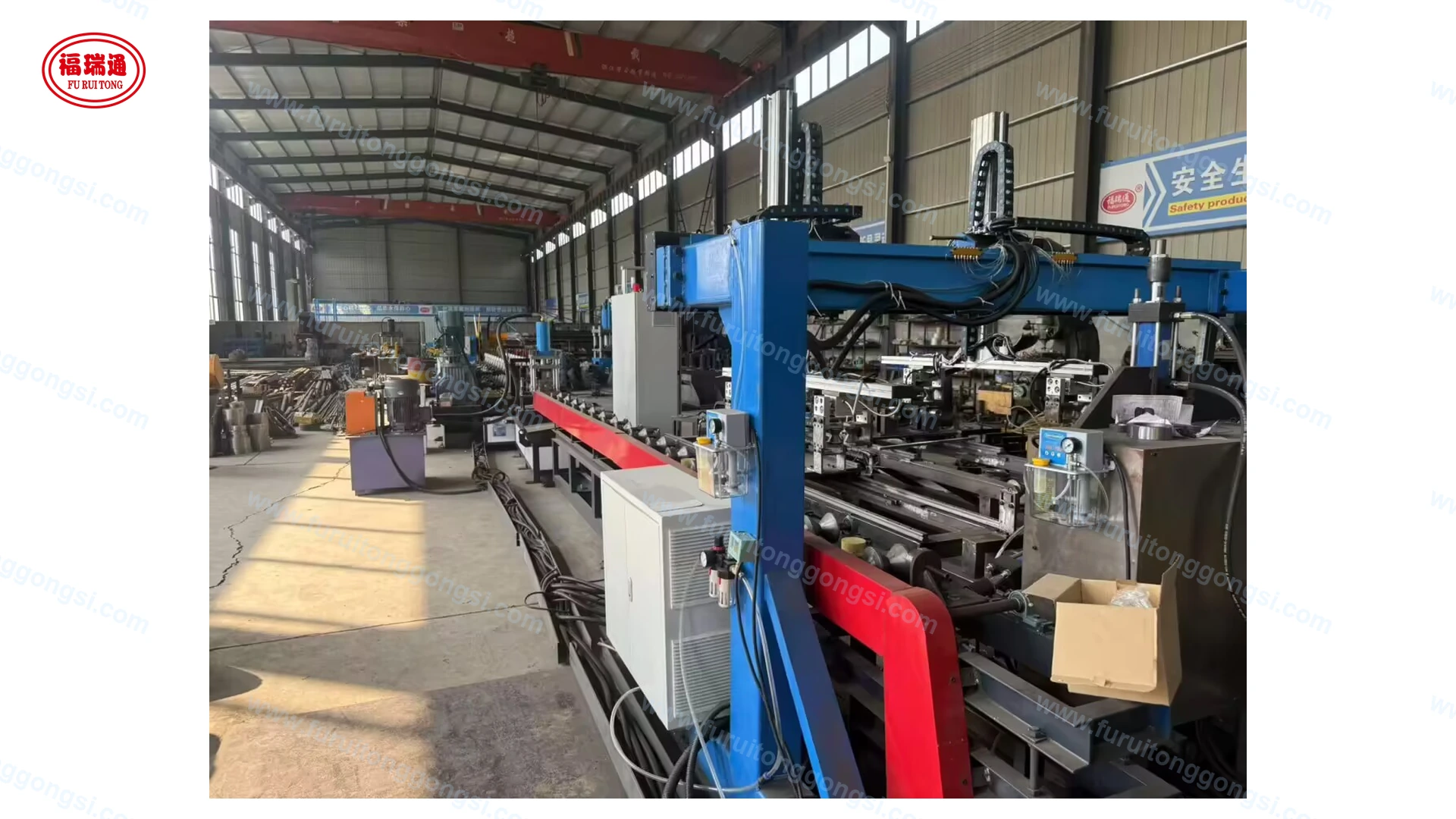

Fully-Automatic Split-Set Rock Bolt Production Line
A complete automated system for continuous, high-volume production of Split-Set.
Machine introduction
The fully automatic Split-Set production line is designed for continuous, high-volume anchor production. It automatically completes steel-strip feeding, decoiling, roll forming, necking, cutting, ring forming, ring welding and finished-product discharge. The entire cycle runs without manual intervention. A centralized intelligent PLC system controls the line. Replacing a small number of forming rolls and accessories or adjusting operating parameters allows one line to produce several anchor diameters, improving output, stabilizing product quality and significantly reducing production and labor costs.
Production tasks and use cases
- Continuous decoiling and die forming
- Hydraulic cutting, necking and discharge
- Multiple diameters through mold changes
Recommended wearing parts
- Cutting blade
- Necking die
Information needed for equipment selection
Share these project details so our team can check the applicable machine configuration.
- Finished-product dimensions, tolerances and required process steps
- Raw-material grade, form and incoming size
- Target output, workshop space and available utilities
Questions about this machine
Configuration and quotation are confirmed against your actual production requirements.
What information is needed to confirm the configuration of Fully-Automatic Split-Set Rock Bolt Production Line?
Provide the raw-material specification, finished-product dimensions, required process steps, target output and available workshop space. Furuitong will confirm the applicable configuration before quotation.
Which production tasks does Fully-Automatic Split-Set Rock Bolt Production Line cover?
Continuous decoiling and die forming; Hydraulic cutting, necking and discharge; Multiple diameters through mold changes
How do I switch the line to produce another specification?
When switching production to another specification, follow these steps: 1. Calculate the incoming material width required for the new specification and replace the material. 2. Replace the forming-machine tooling (either replace the forming rolls only or replace the complete forming unit). 3. Replace the cutting and necking dies and the ring-forming die. 4. Adjust the ring-welding fixture and the truss-welding fixture.
