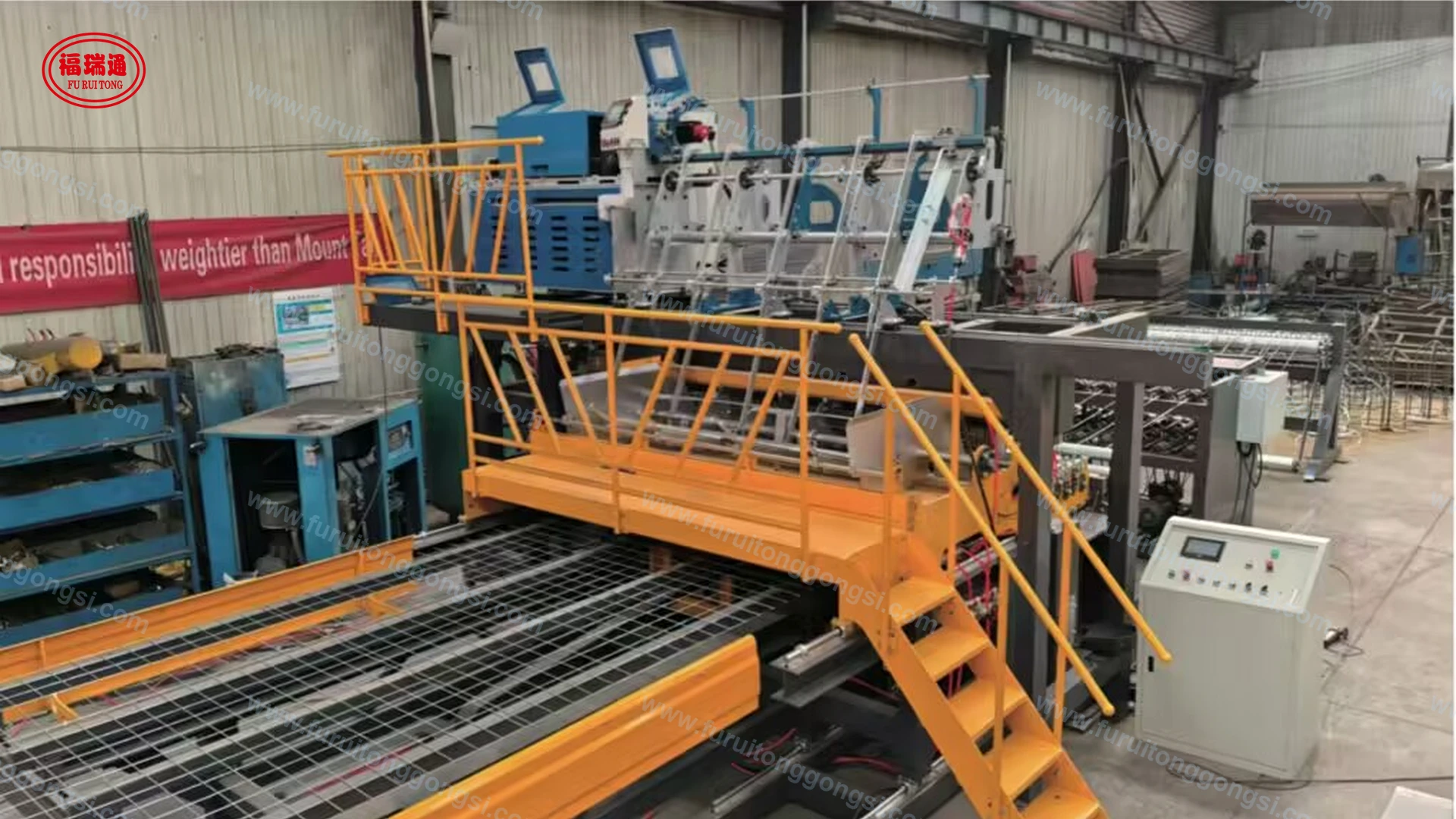

Fully Automatic Wire Mesh Welding Machine
Longitudinal wires are fed from coils and pre-cut cross wires are fed from a hopper.
Machine introduction

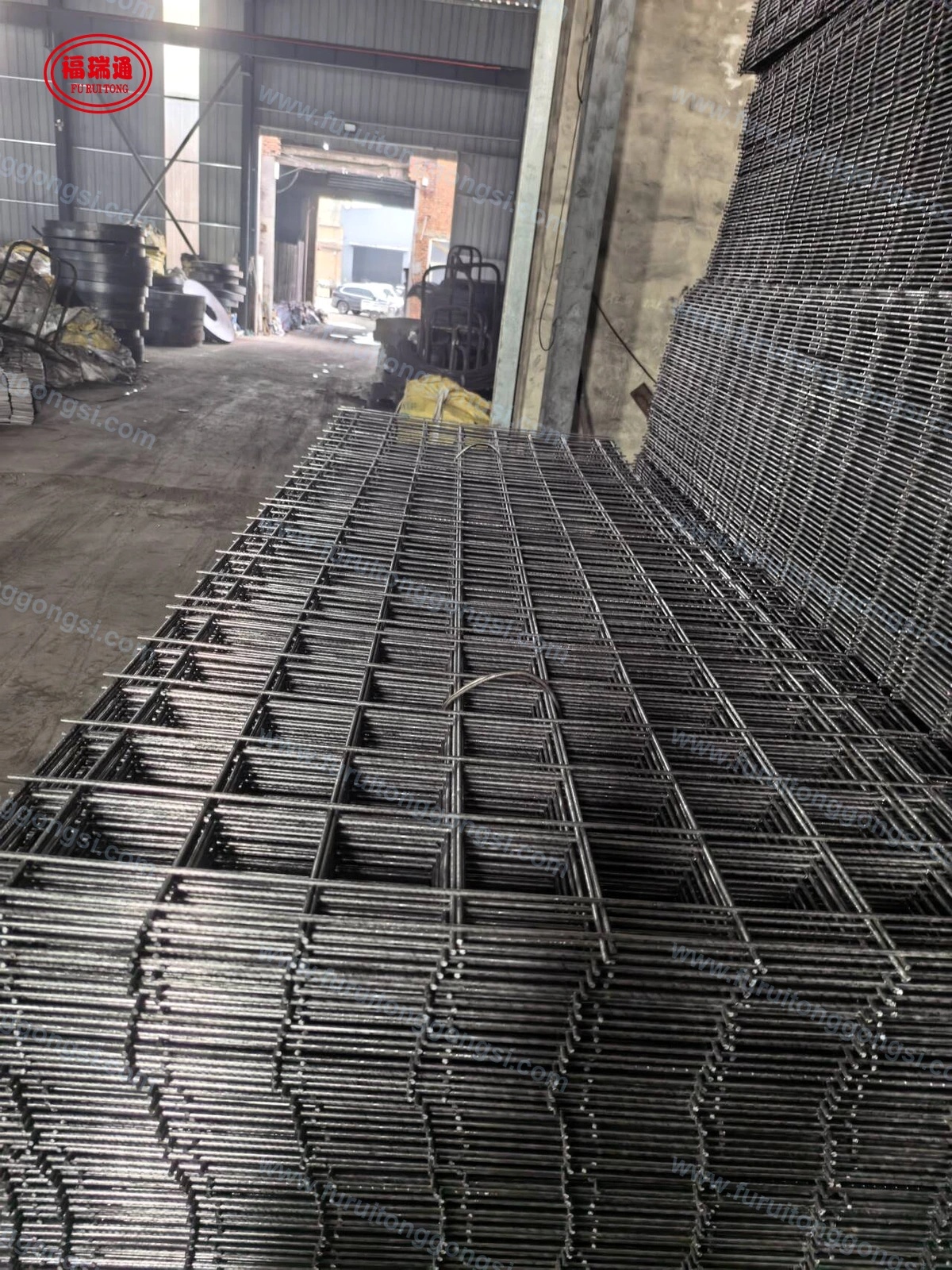

Fully automatic support wire mesh welding production line is mainly used for batch production of welded reinforcing mesh panels for mine support and is available in models with different welding widths.

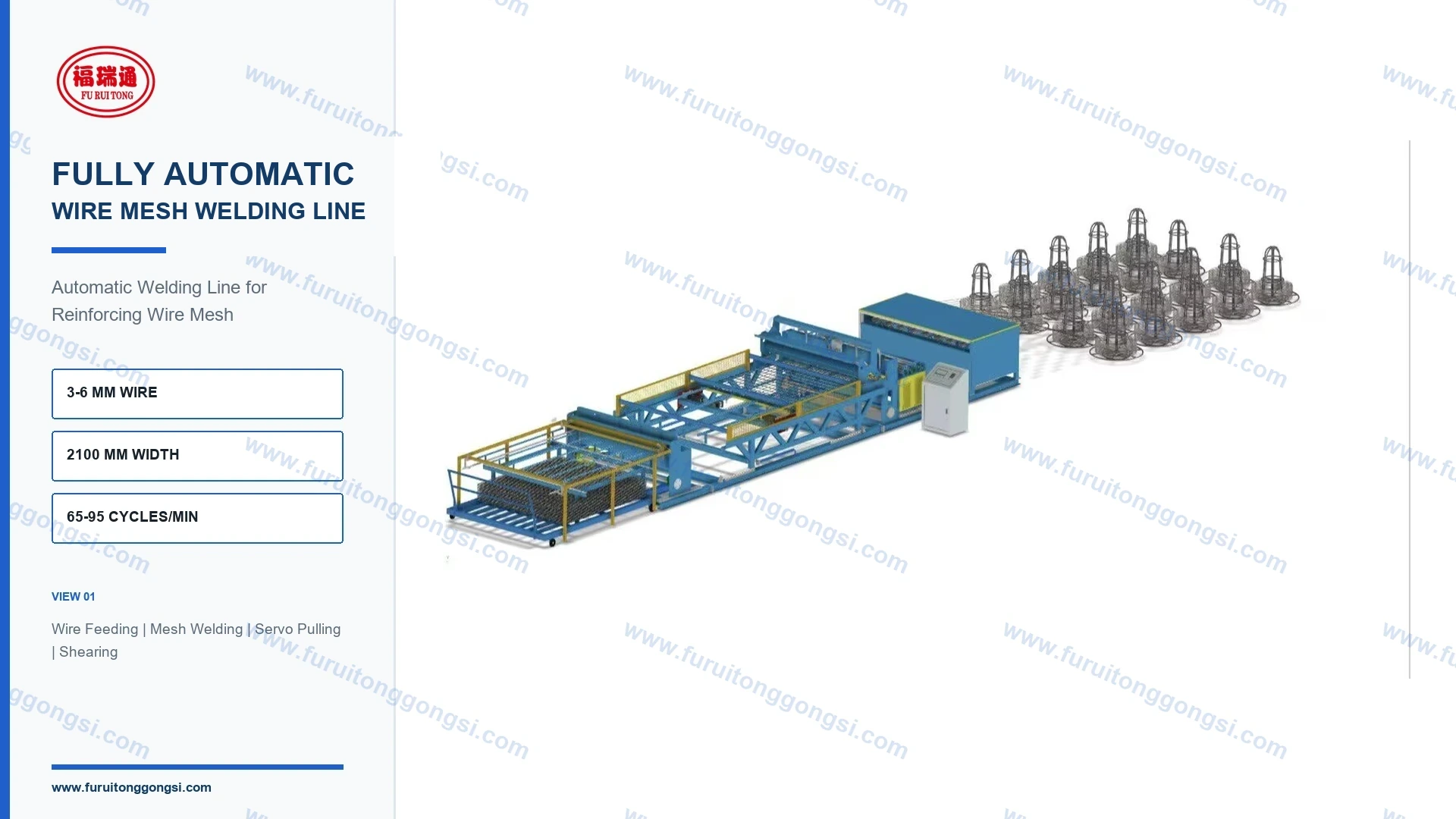

Work process: Longitudinal wires are paid off from wire reels and guided directly into the welding station; pre-cut cross wires are automatically discharged and fed from the hopper. After resistance spot welding, the servo mechanism cyclically pulls the mesh forward. When the preset length is reached, a heavy-duty shearing machine cuts the mesh and outputs the finished welded panel.
Technical features:
Safety protection: A cross-wire detection device stops the machine automatically when a cross wire is missing, reducing the risk of faults and manual workload.
Welding performance: The upper and lower electrodes use water cooling and flexible pressure control to provide strong, stable welds with minimal spatter and high production efficiency.
Mechanical design: The servo-driven cyclic mesh-pulling structure saves workshop space and delivers high dimensional accuracy. The cross-wire hopper can move in both directions as a complete assembly for fast changeover between mesh specifications.
Intelligent control system: The complete line uses a PLC programmable control system for precise, controllable operation and convenient routine maintenance.
Note: The standard model welds 3–6 mm wire. Custom equipment is available for other wire diameters.
Production tasks and use cases
- Automatic welded wire mesh production
- Automatic cross-wire feeding and detection
- Servo cyclic mesh pulling
- PLC programmable control system
Recommended wearing parts
- Copper welding tip
Information needed for equipment selection
Share these project details so our team can check the applicable machine configuration.
- Finished-product dimensions, tolerances and required process steps
- Raw-material grade, form and incoming size
- Target output, workshop space and available utilities
Questions about this machine
Configuration and quotation are confirmed against your actual production requirements.
What information is needed to confirm the configuration of Fully Automatic Wire Mesh Welding Machine?
Provide the raw-material specification, finished-product dimensions, required process steps, target output and available workshop space. Furuitong will confirm the applicable configuration before quotation.
Which production tasks does Fully Automatic Wire Mesh Welding Machine cover?
Automatic welded wire mesh production; Automatic cross-wire feeding and detection; Servo cyclic mesh pulling; PLC programmable control system
