Anchor Plate Production Line
An anchor plate production line integrating strip decoiling, leveling, servo feeding and hydraulic press forming.
Machine introduction

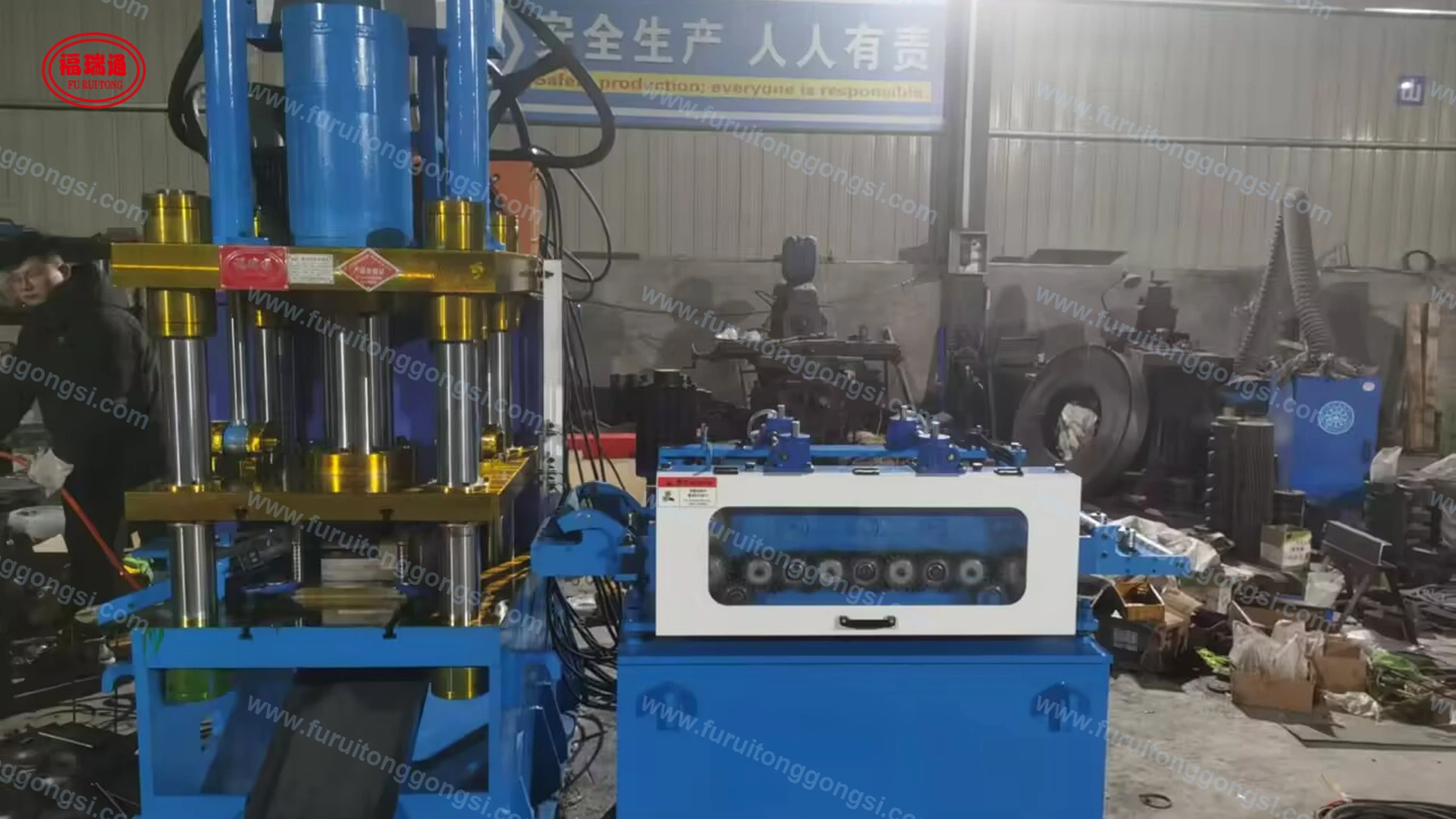

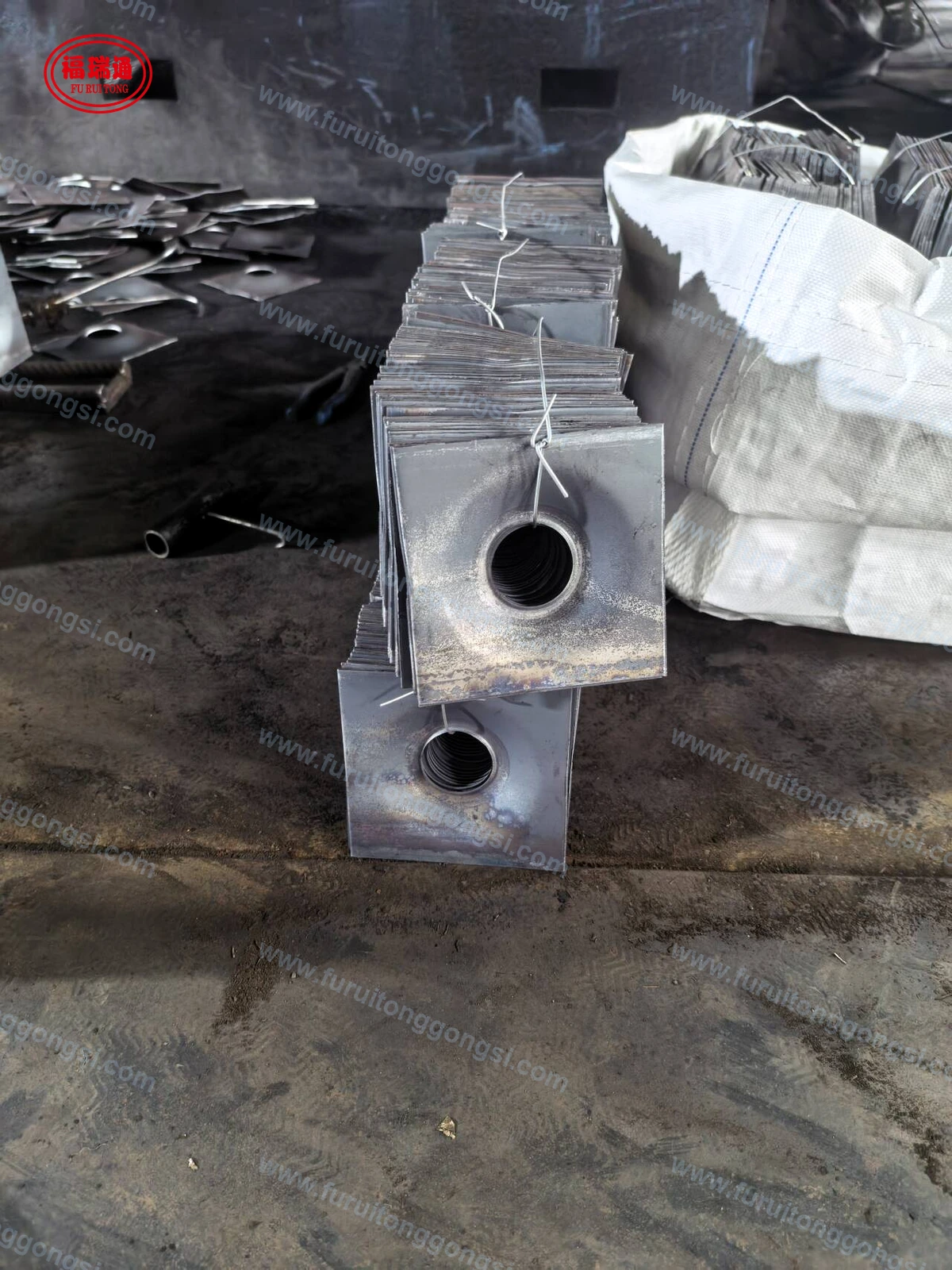

This equipment is a dedicated automated line for mining anchor plate production. It integrates strip-steel decoiling, leveling, servo feeding and hydraulic press forming. After the strip is loaded, the line automatically performs leveling and feeding, hole punching and press forming. Changing the dies enables the production of anchor plates and cable-bolt plates in several specifications. The complete line is PLC-controlled and highly integrated, substantially reducing manual operation and ensuring consistent finished products. It is suitable for high-volume production of mining-support components.
Production tasks and use cases

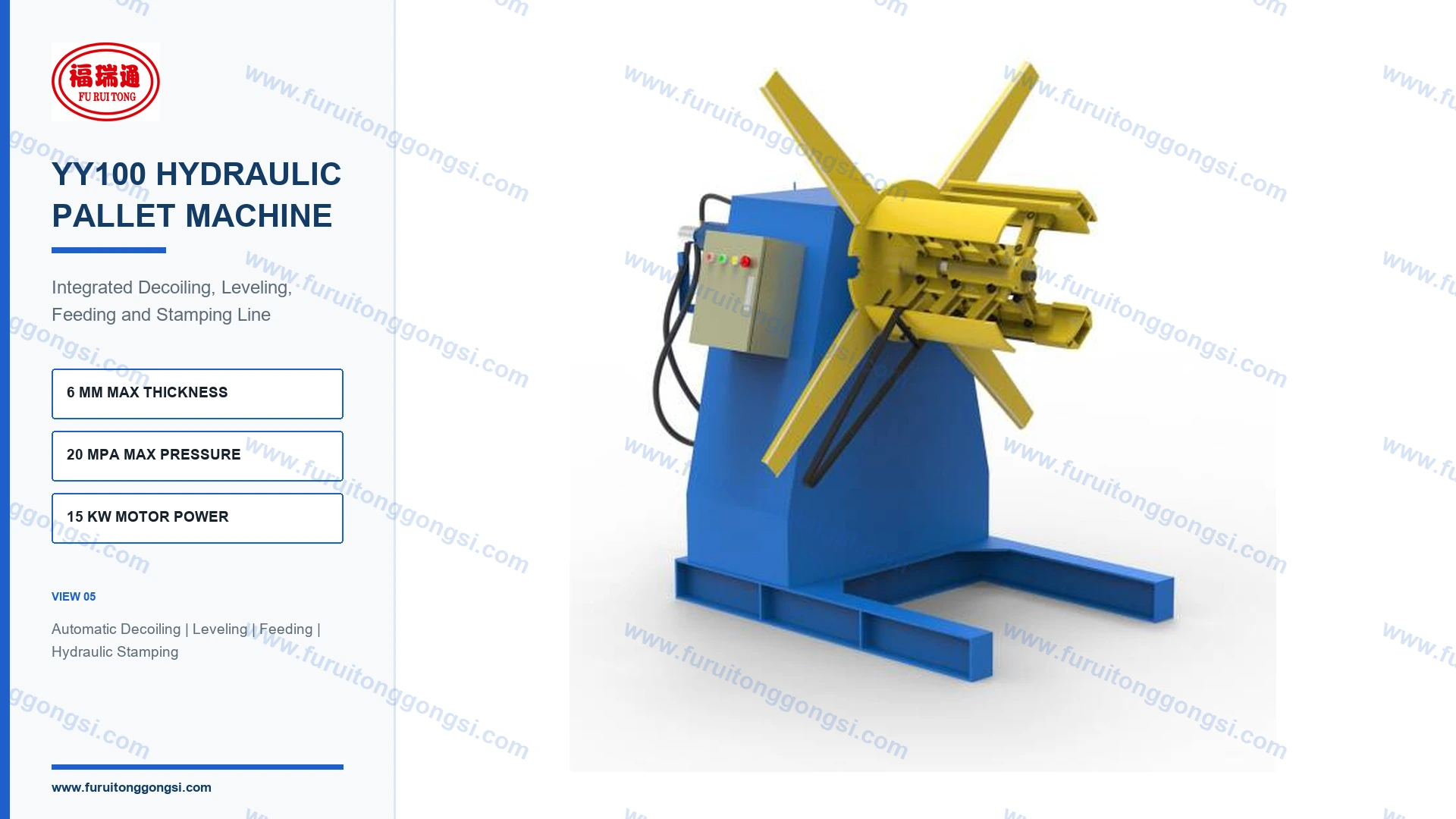

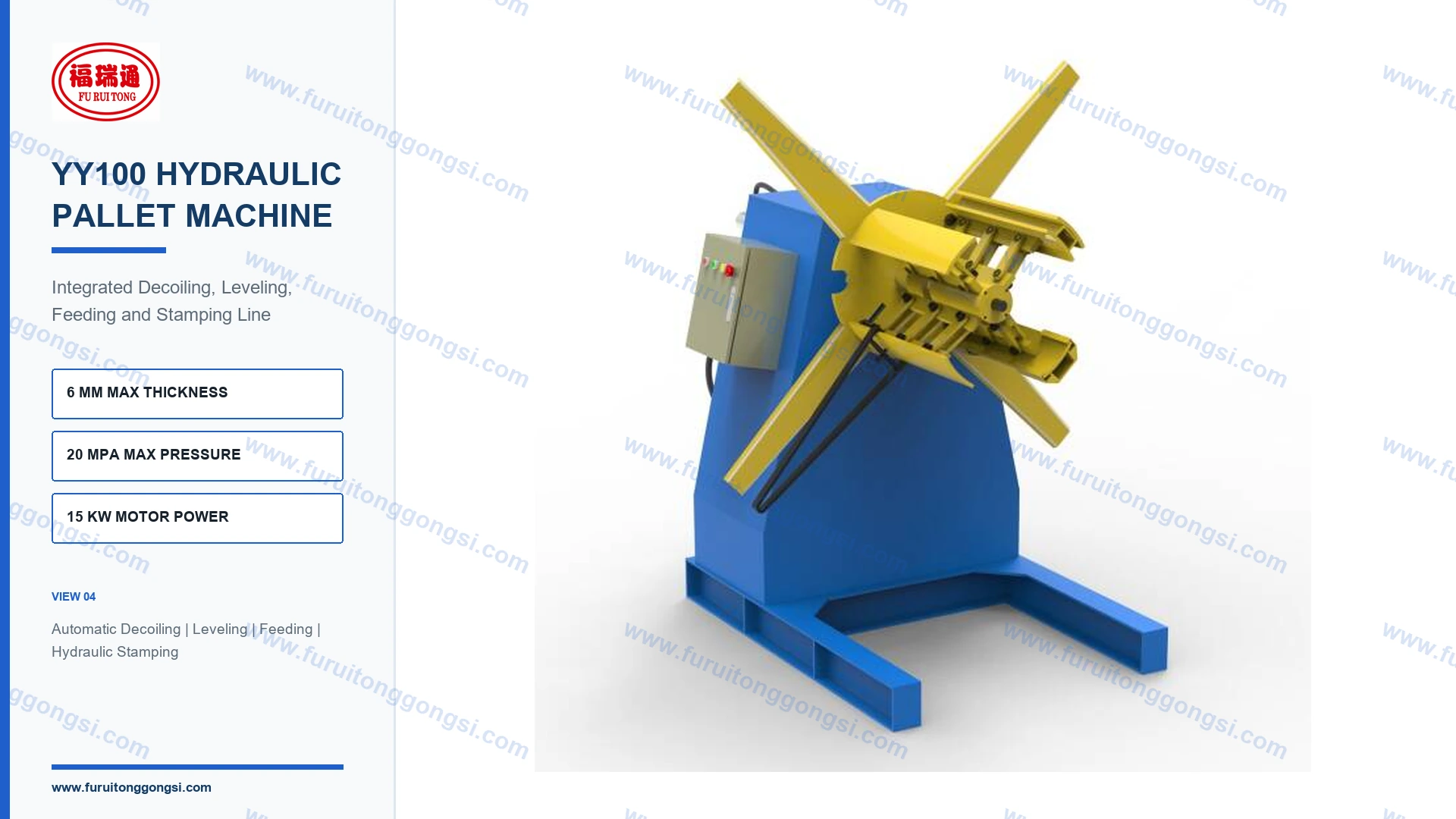

- Automatic strip-steel decoiling

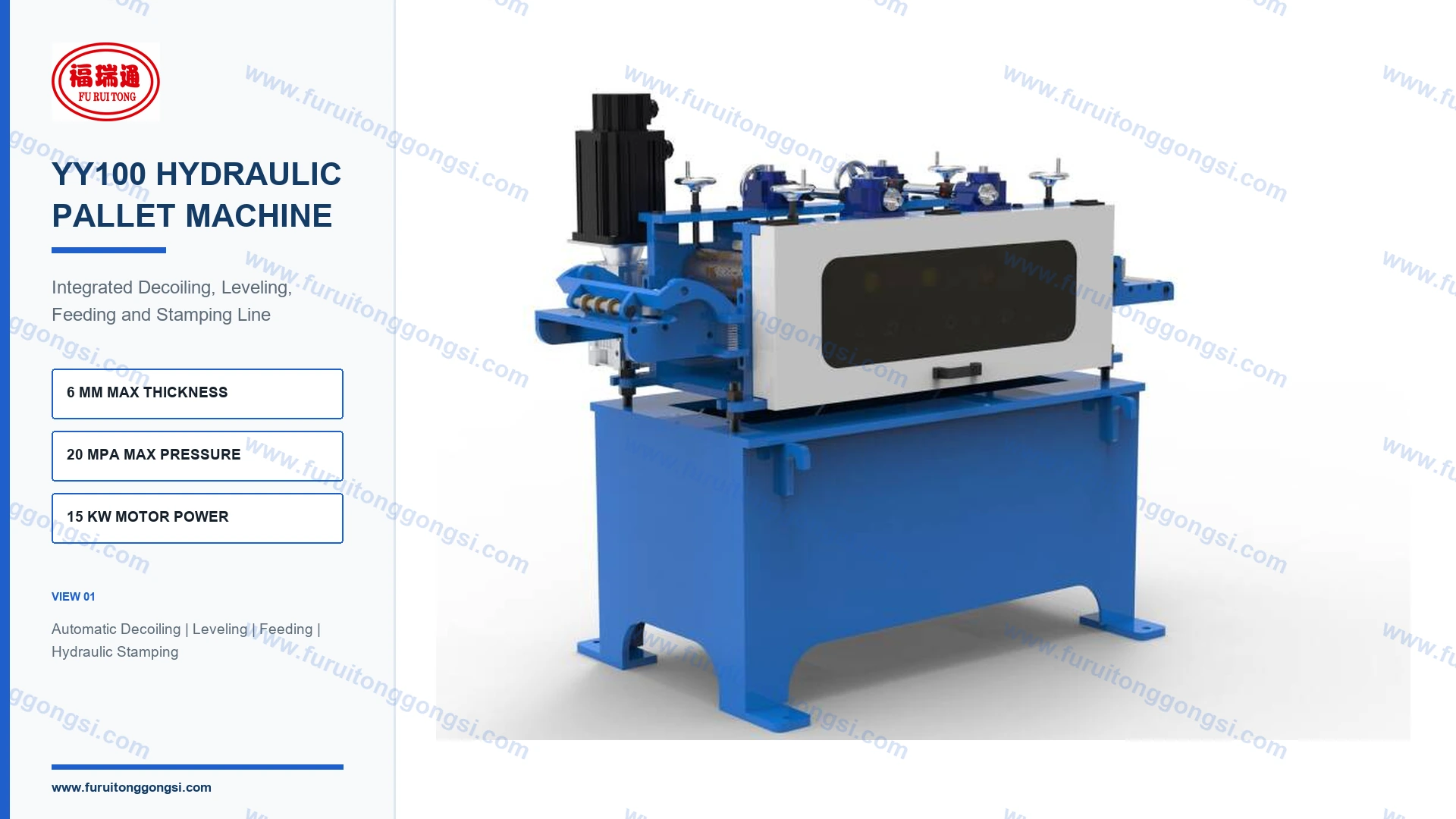

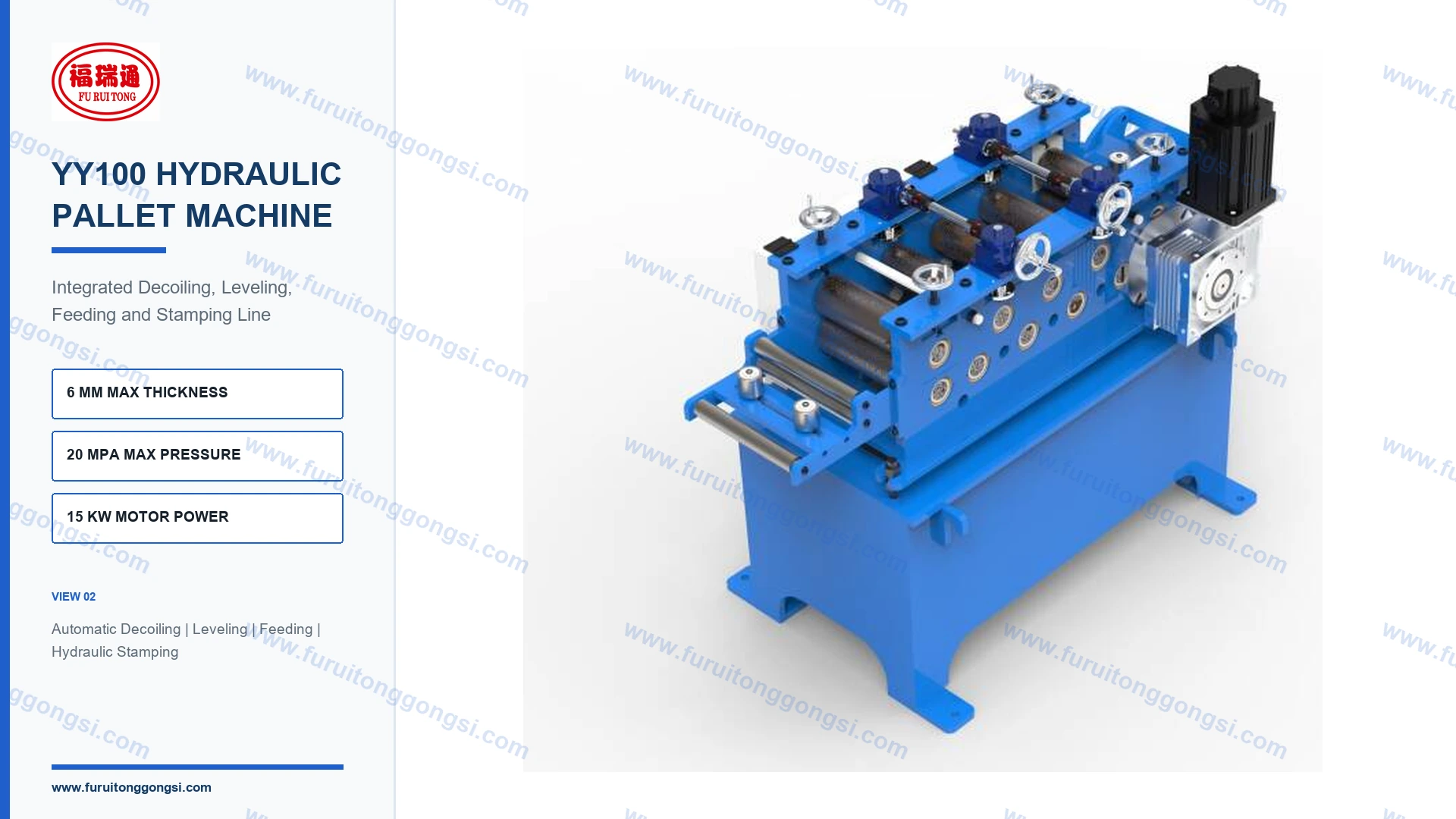

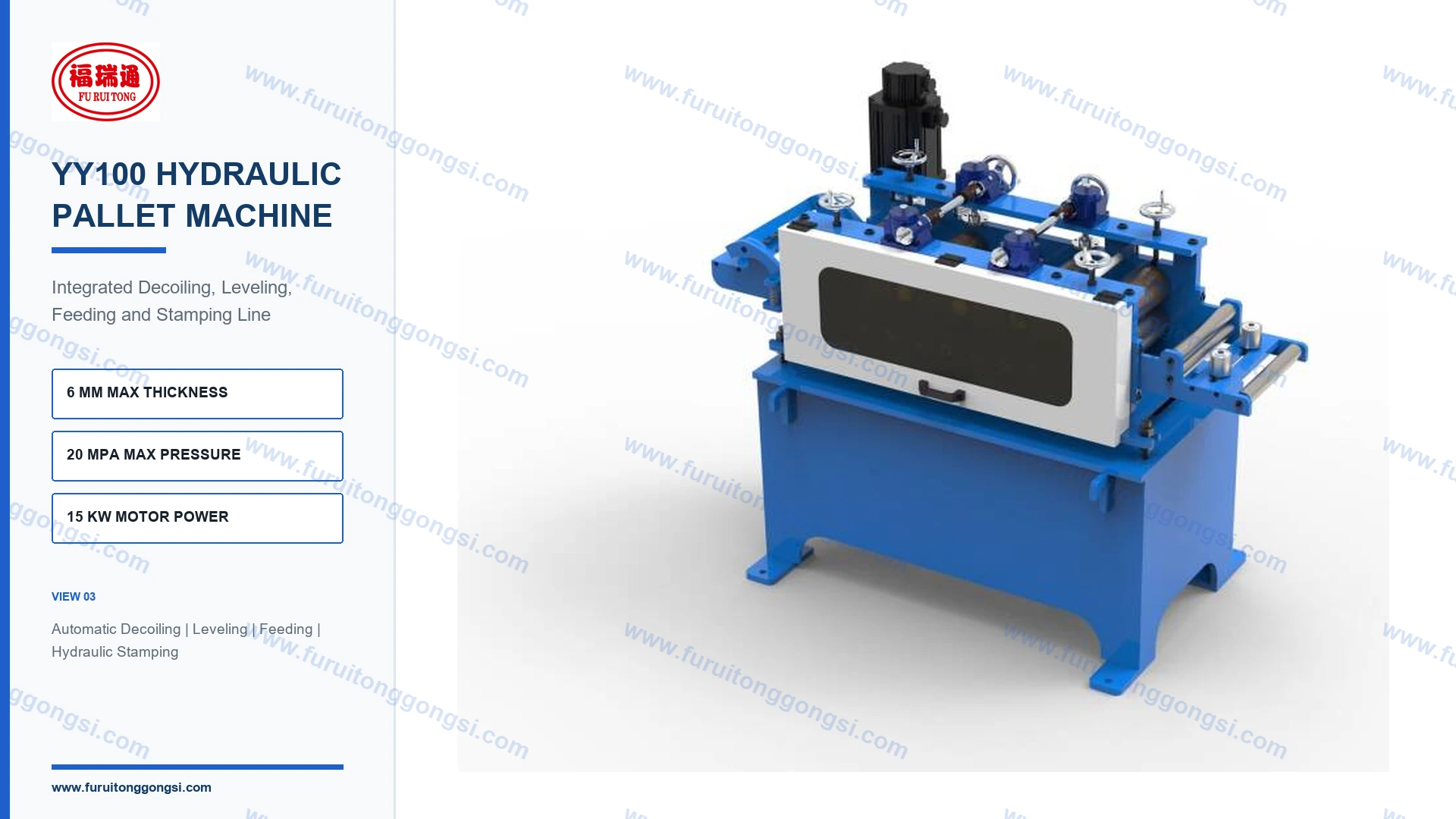

- Integrated leveling and feeding
- CNC PLC stamping control
Recommended wearing parts
- Punch
- Proximity switch
Information needed for equipment selection
Share these project details so our team can check the applicable machine configuration.
- Finished-product dimensions, tolerances and required process steps
- Raw-material grade, form and incoming size
- Target output, workshop space and available utilities
Questions about this machine
Configuration and quotation are confirmed against your actual production requirements.
What information is needed to confirm the configuration of Anchor Plate Production Line?
Provide the raw-material specification, finished-product dimensions, required process steps, target output and available workshop space. Furuitong will confirm the applicable configuration before quotation.
Which production tasks does Anchor Plate Production Line cover?
Automatic strip-steel decoiling; Integrated leveling and feeding; CNC PLC stamping control
